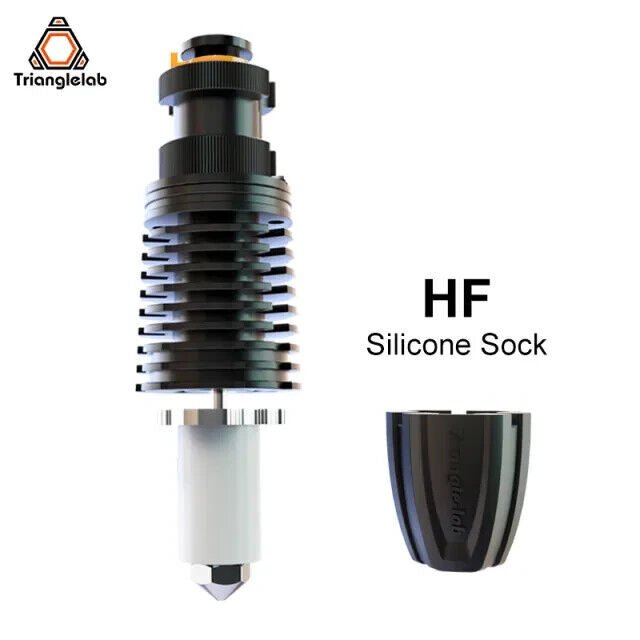

TriangleLab Rapido High Flow Hotend 45mm³/s Plated Copper Nozzle Ceramic Heater

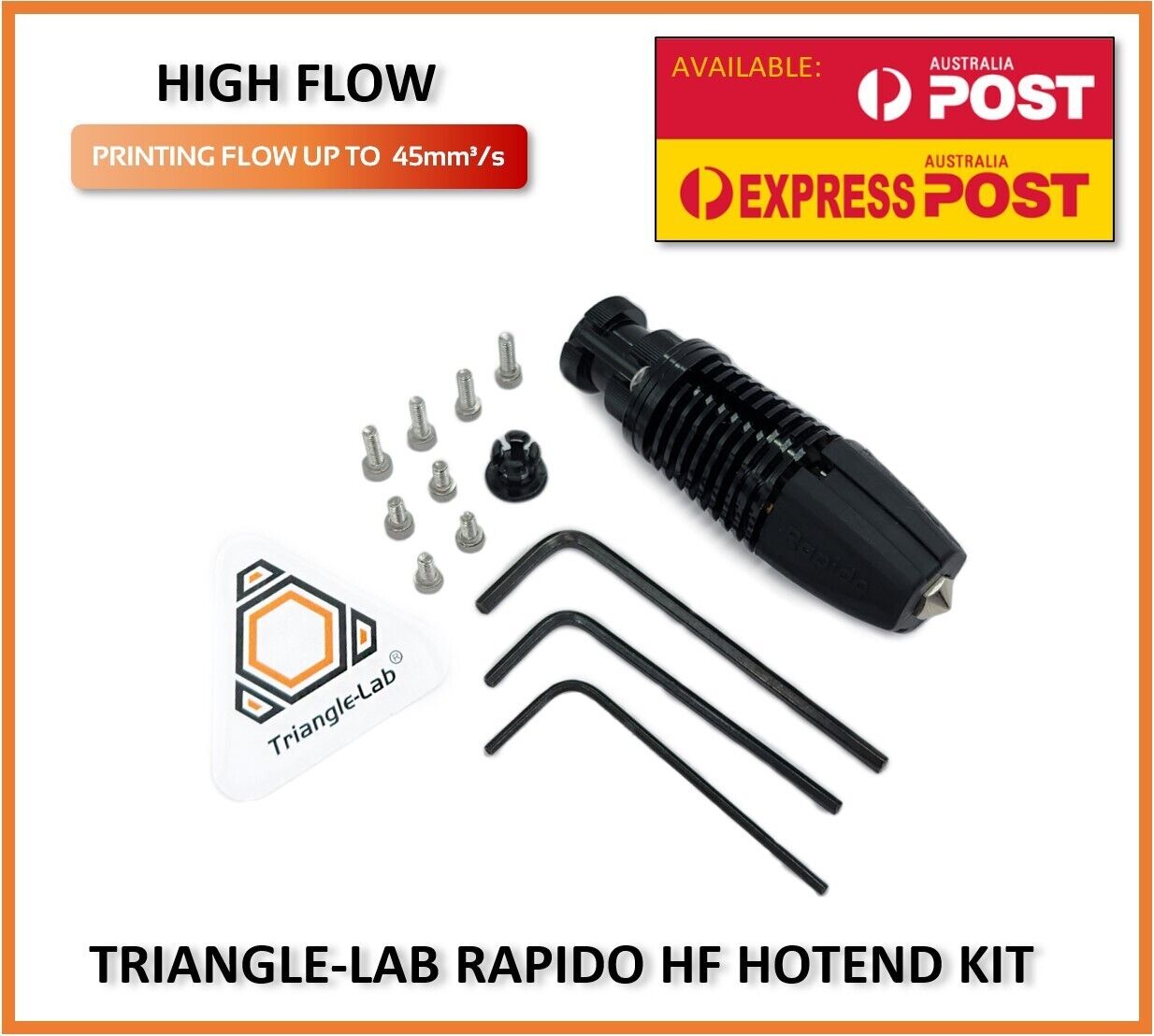

Kit Contains

• 1x Rapido Hotend with Ceramic Heater
• 1x HF Silicone Cover
• 3x PTFE Retaining Clips
• 1x Heater Cable Extension
• 1x Thermistor Cable Extension
• 1x 3pc Allen Key Set
• 1x Hardware Set
• 2x PTFE Collets
• 1x 0.4mm Plated Copper V6 Nozzle

Specifications

Material: Aluminium Heatsink, Bi-Metal Heat break, Plated Copper Nozzle

Weight: 43g (HF)

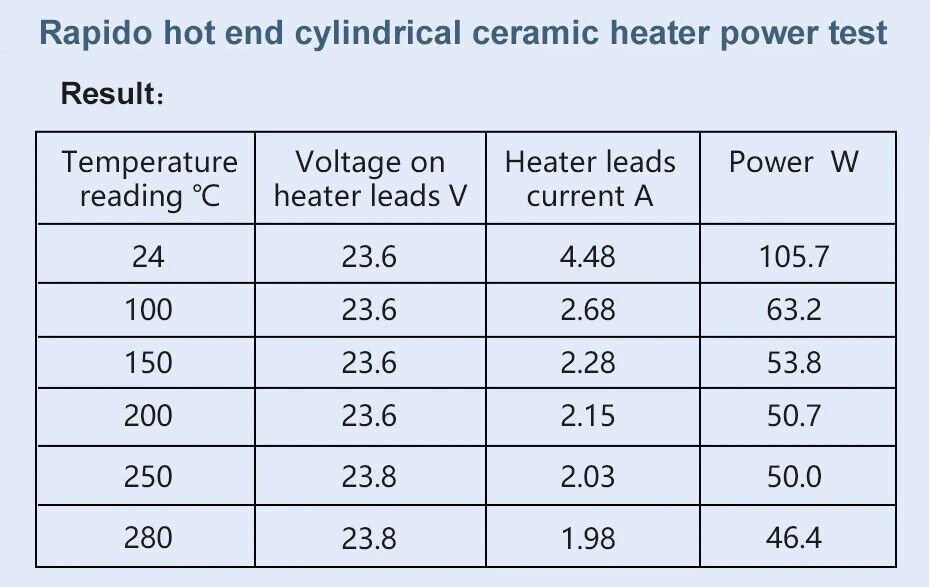

Heater Power: 24v @ 115W ± 8%

Max Flowrate: 45mm³/s

Why choose the Rapido hotend?

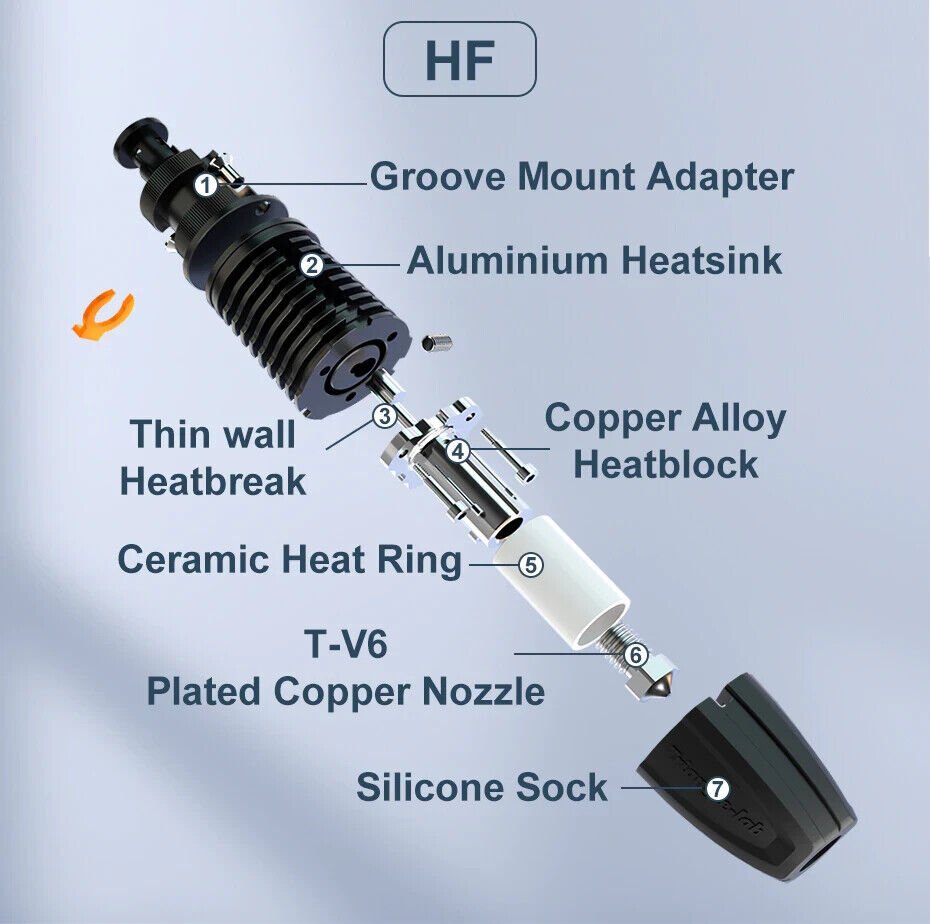

Rapido hotend has a unique copper alloy cylindrical melting zone wrapped in a high-powered ceramic heating element of which creates a uniform heating zone and a shorter heat transfer path. Therefore, achieving a greater flow and heating efficiency.

The thin-walled surgical-grade stainless steel heat breaker and three titanium screws make the entire structure more robust than a basic hotend and with the Heatsink / Heater design, the nozzle can be changed with one hand, and prevents damage by collisions during printing.

Mounting

The detachable groove mount adapter allows for dual use of groove mount like the standard V6 design or screw mount that is used in printers like the Voron. The Rapido hotend has 16mm bolt circle diameter mounting screw hole of which is the same as the dragon hotend.

Form Factor & Flow

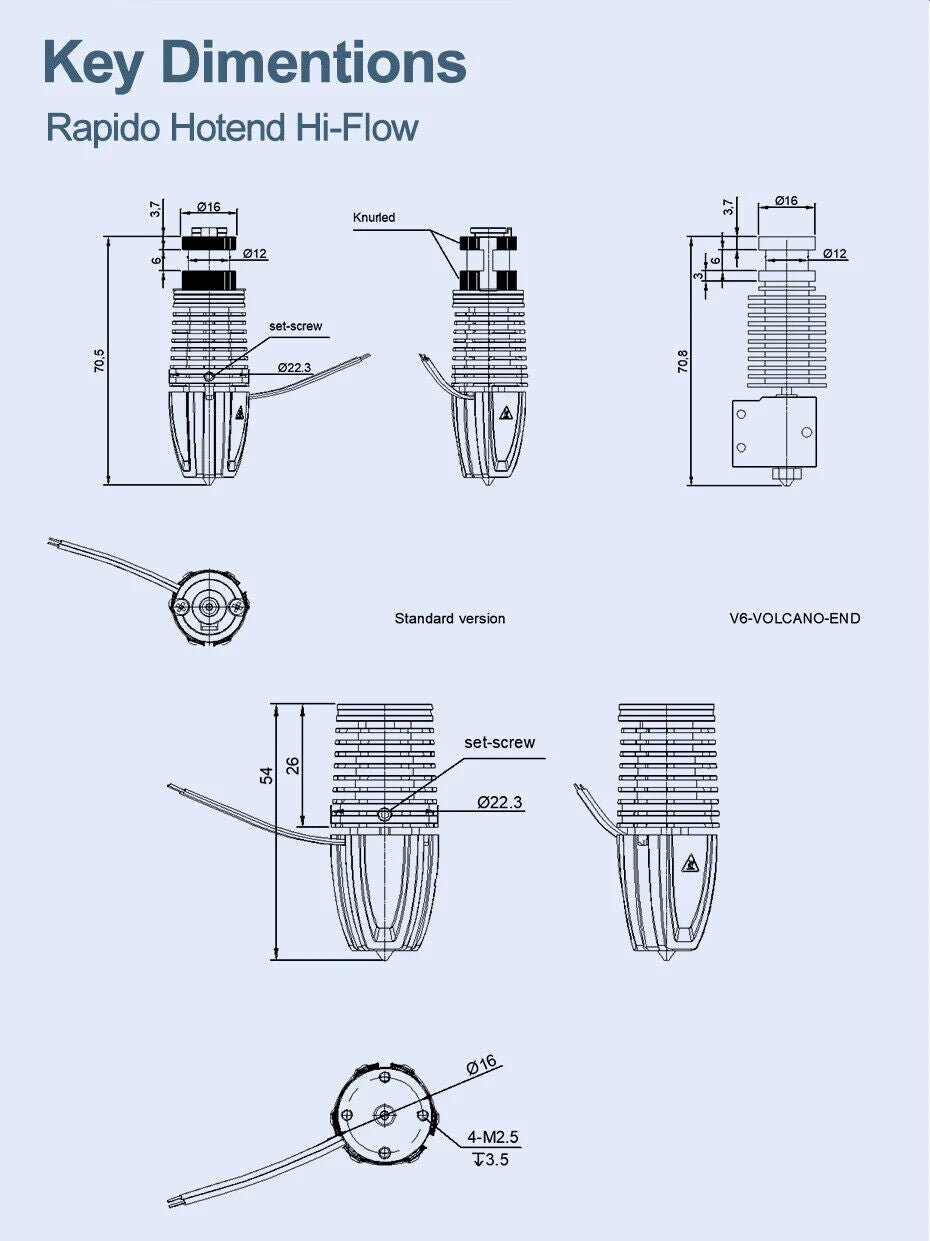

The Rapido HF hotend has the same overall dimensions as the Volcano hotend with V6 or compatible nozzles installed by default. it can be used as a direct replacement for the Volcano hotend while having a higher flow rate (up to 45mm³/s) and the same extrusion accuracy than the Volcano.
