Raspberry Pi PICO Genuine Microcontroller RP2040 Headers / Heatsink / Cable Kit

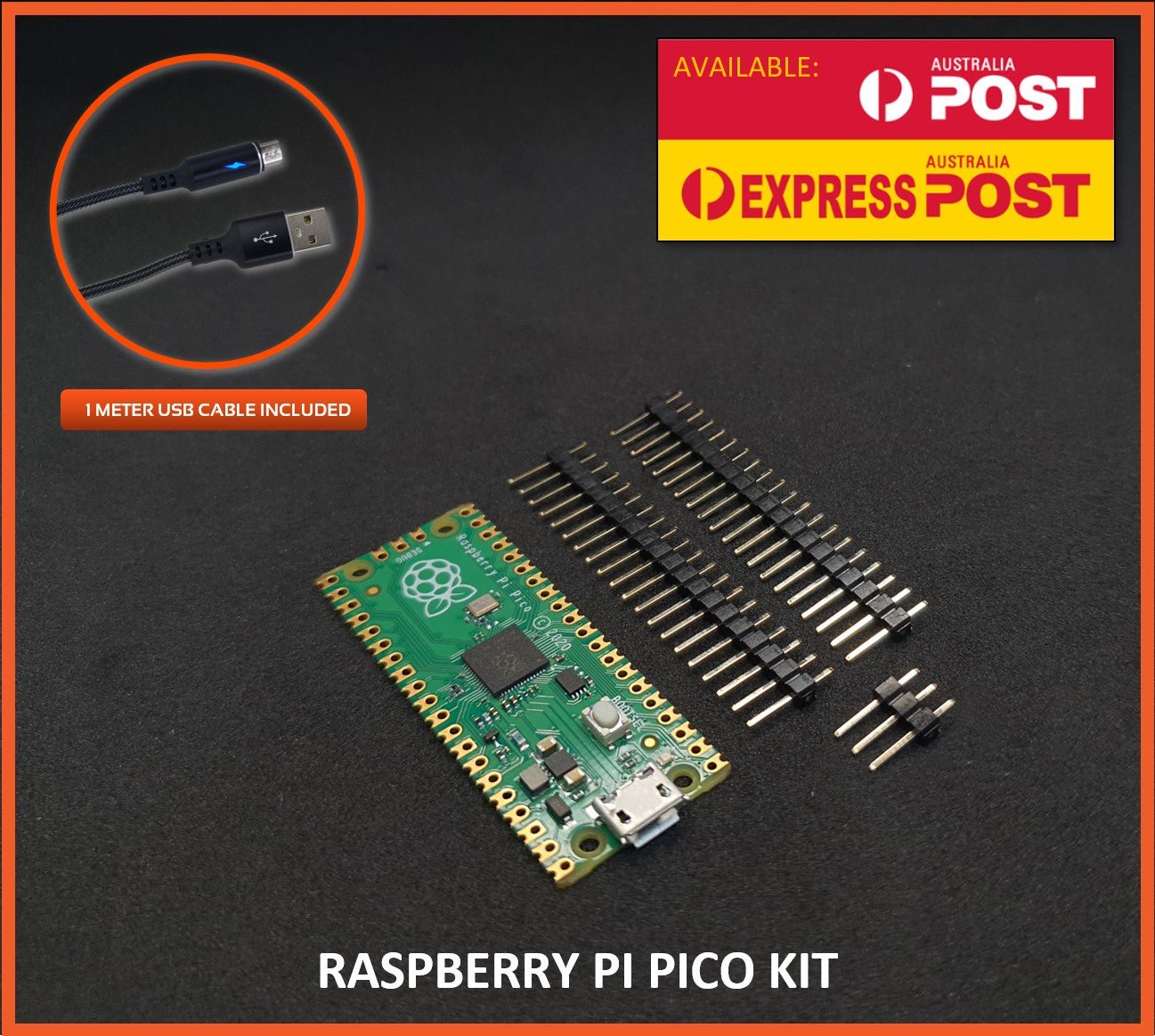

Set Contains;

1 x Genuine Raspberry Pi PICO

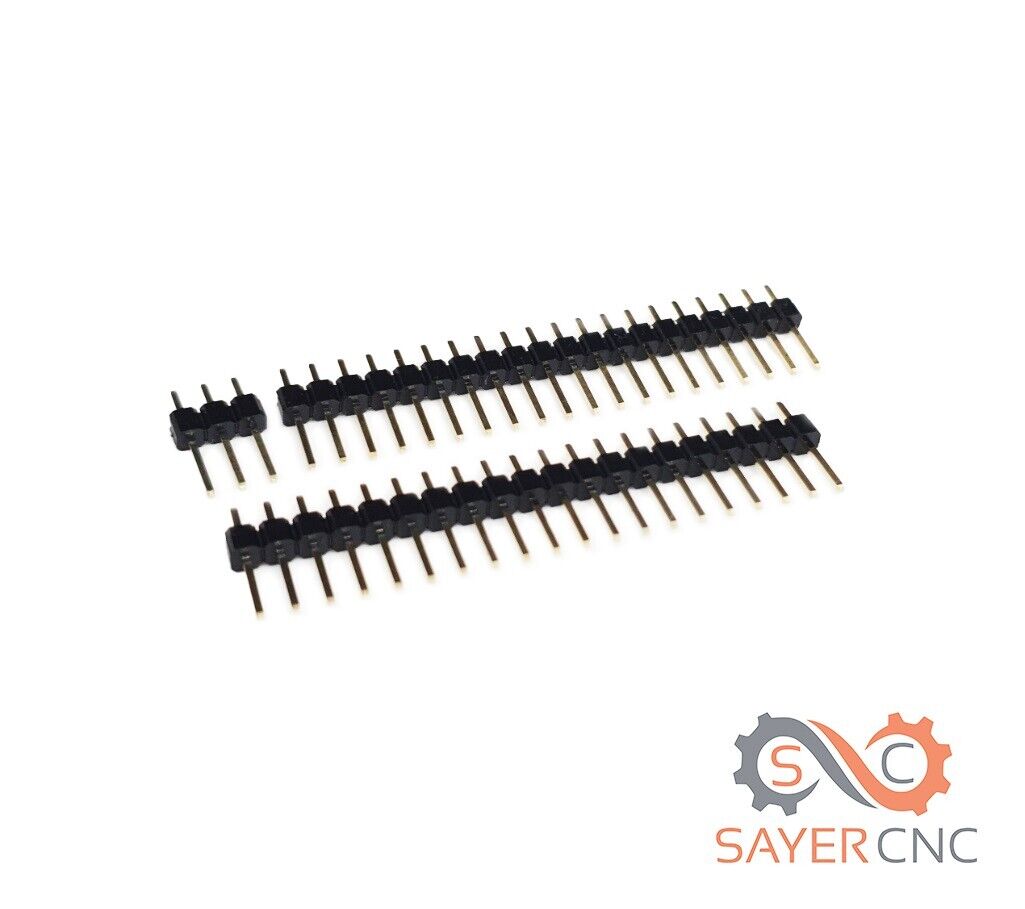

2 x 20 Pin Headers

1 x 3 Pin Header

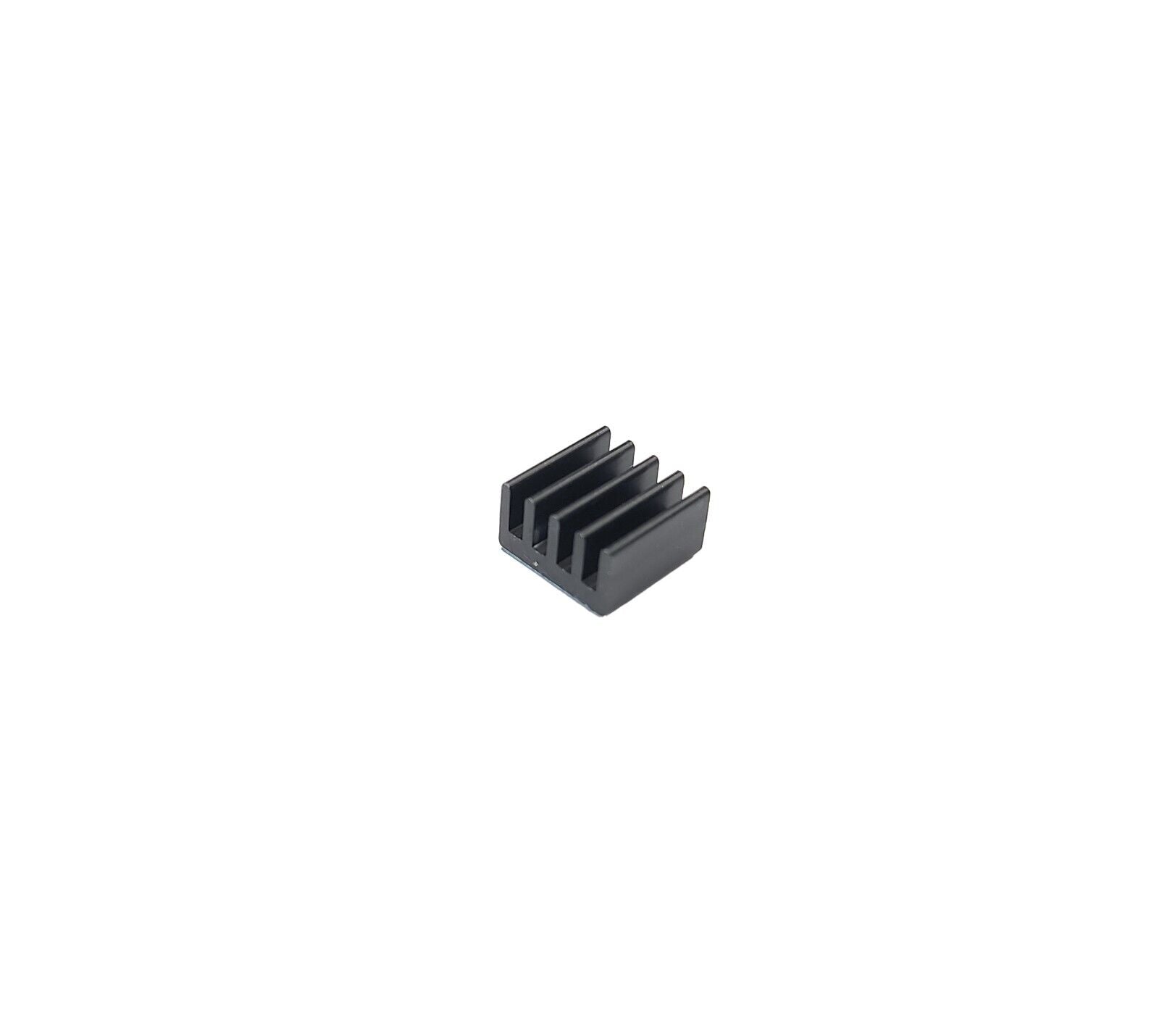

1 x Heatsink

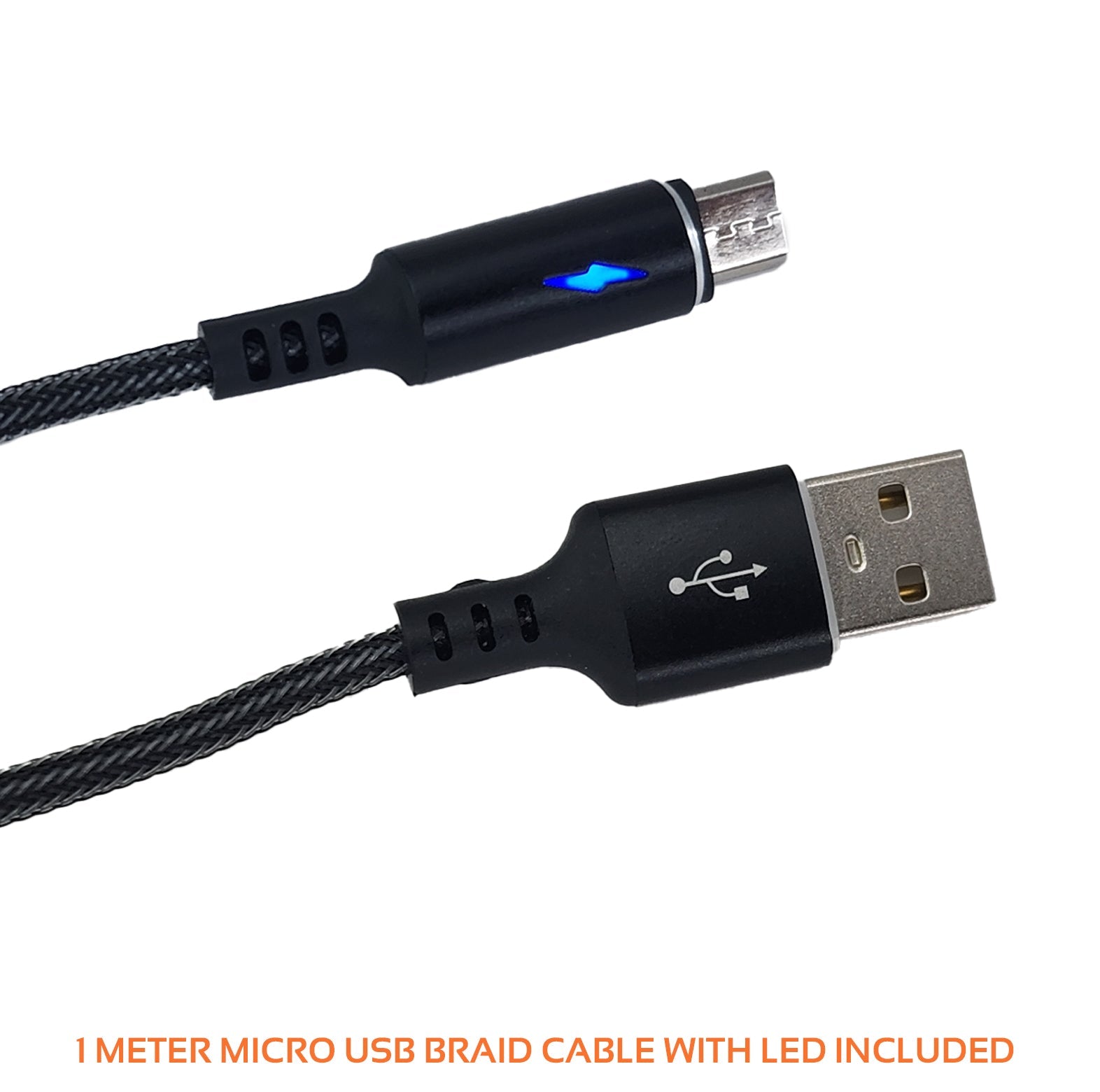

1 x 1 Metre Micro USB Cable with Power Indicator Light

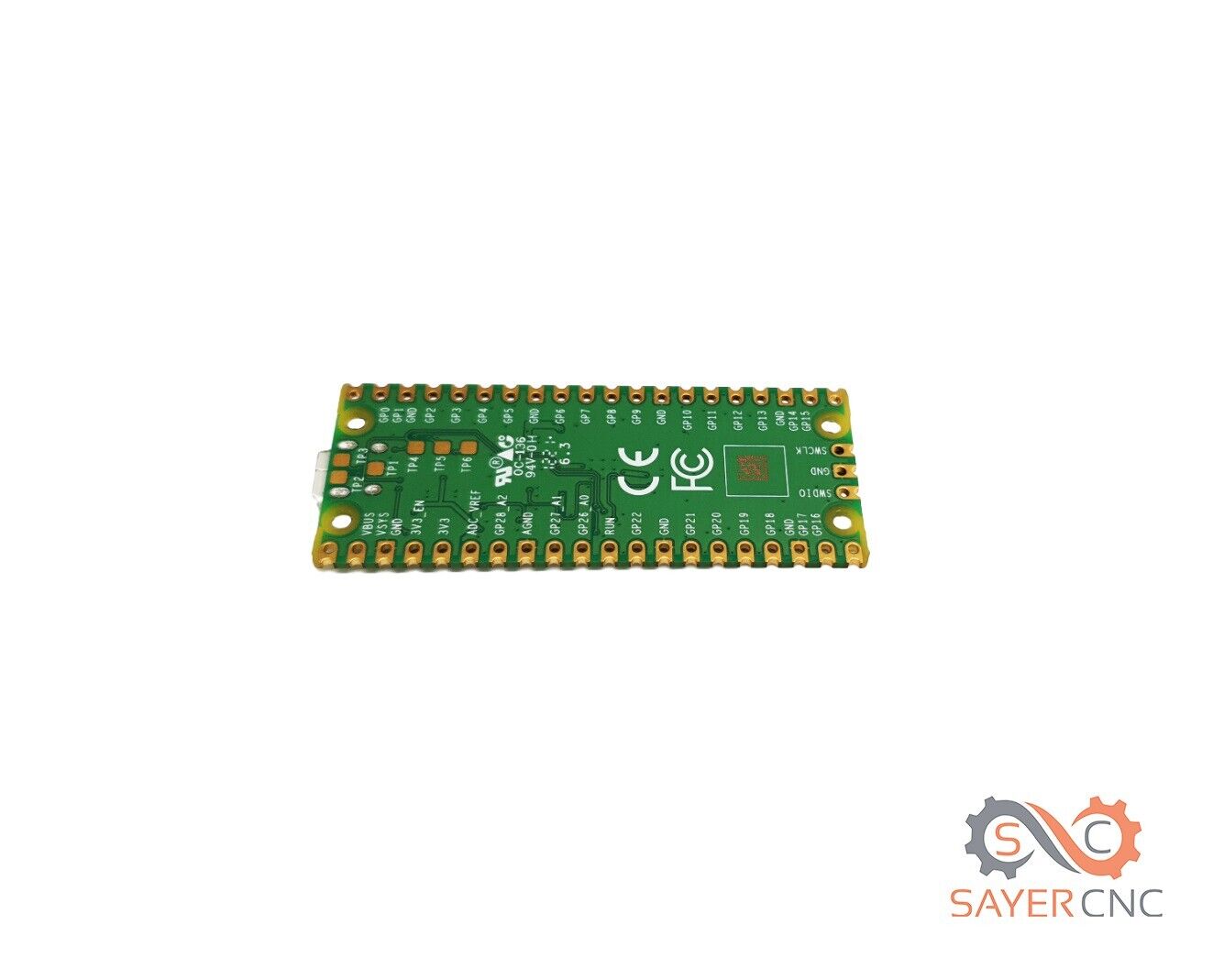

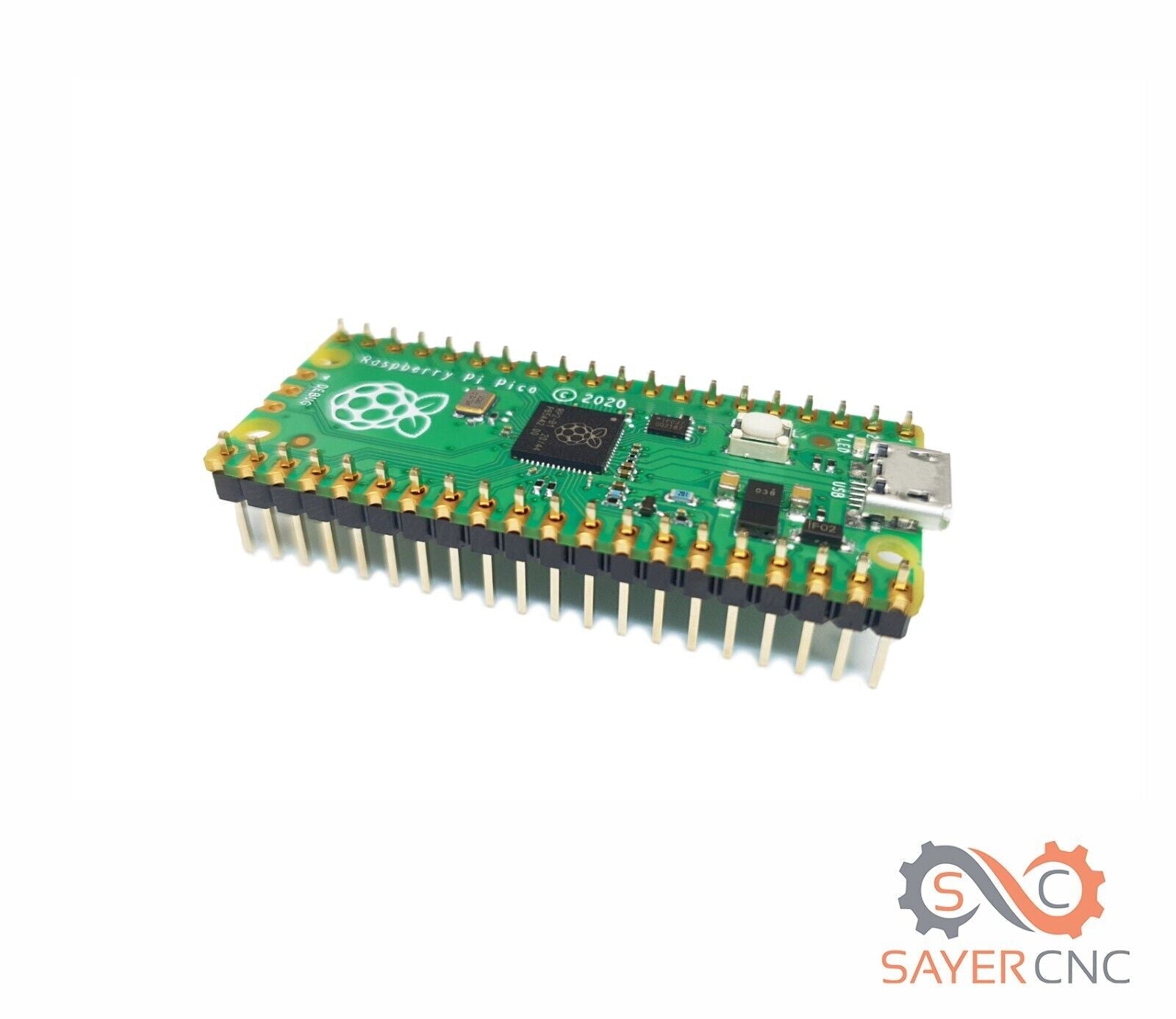

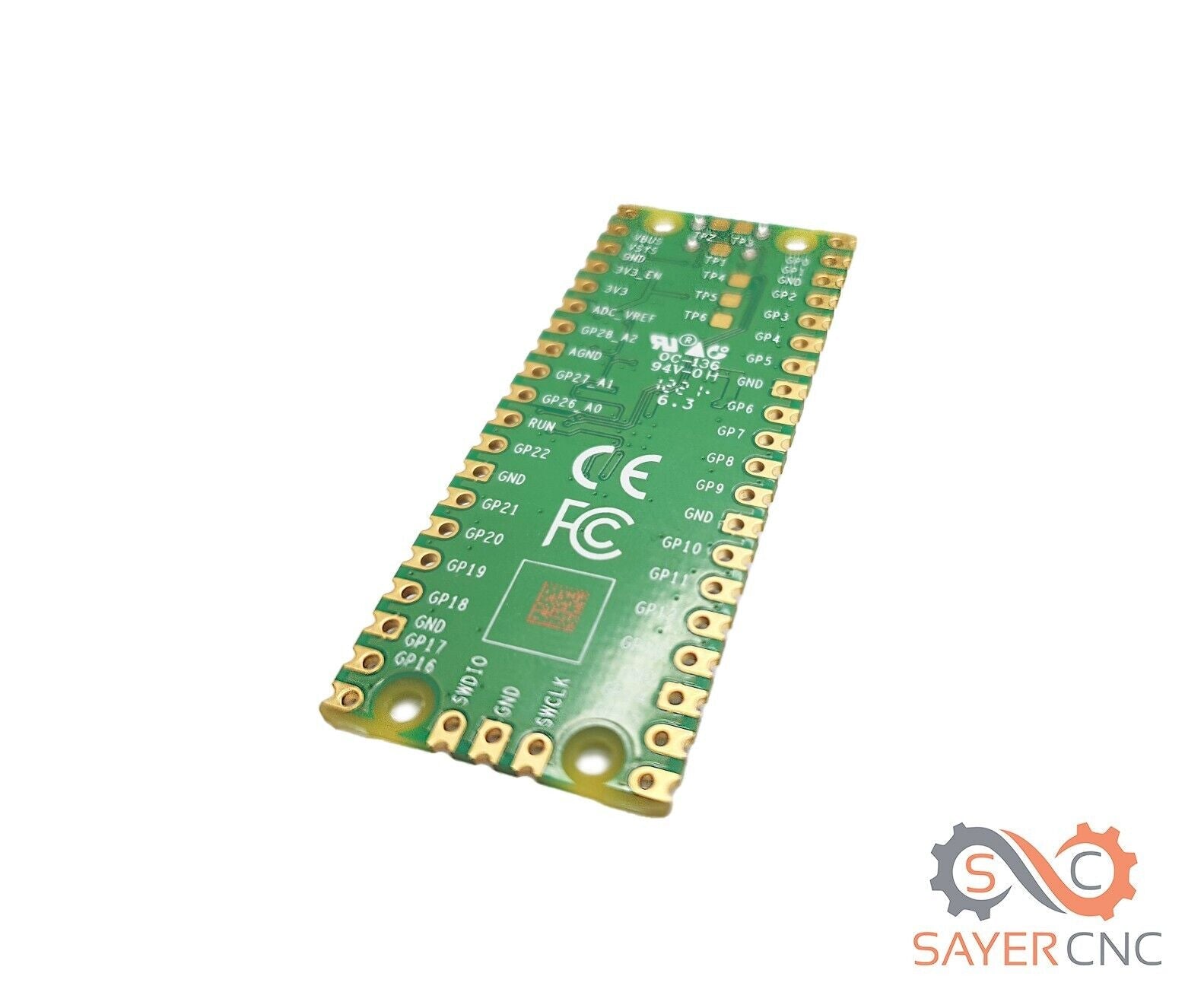

Raspberry Pi PICO

The Pico is a low cost, high performance microcontroller board built around the Raspberry Pi RP2040 chip. These genuine Raspberry Pi boards come with required pin headers (single row 20pin x 2 & single row 3pin x1).

Product features;

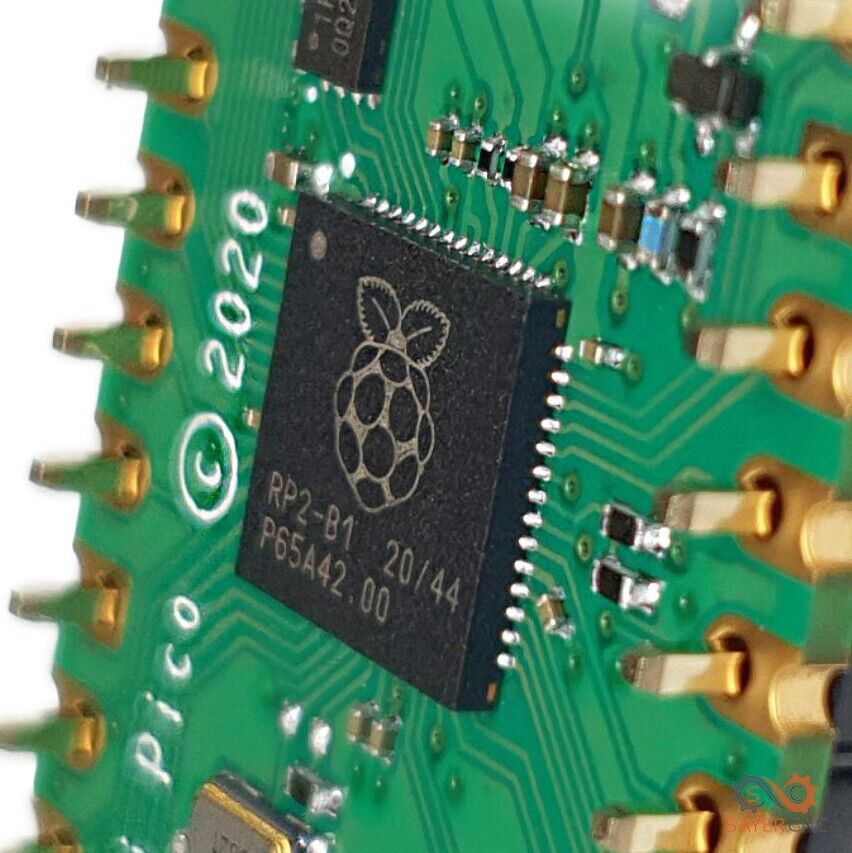

• Raspberry Pi designed RP2040 chipset

• Dual core ARM Cortex M0+ processor at up to 133MHz with variable core frequency

• 264kB SRAM & 2MB onboard flash memory

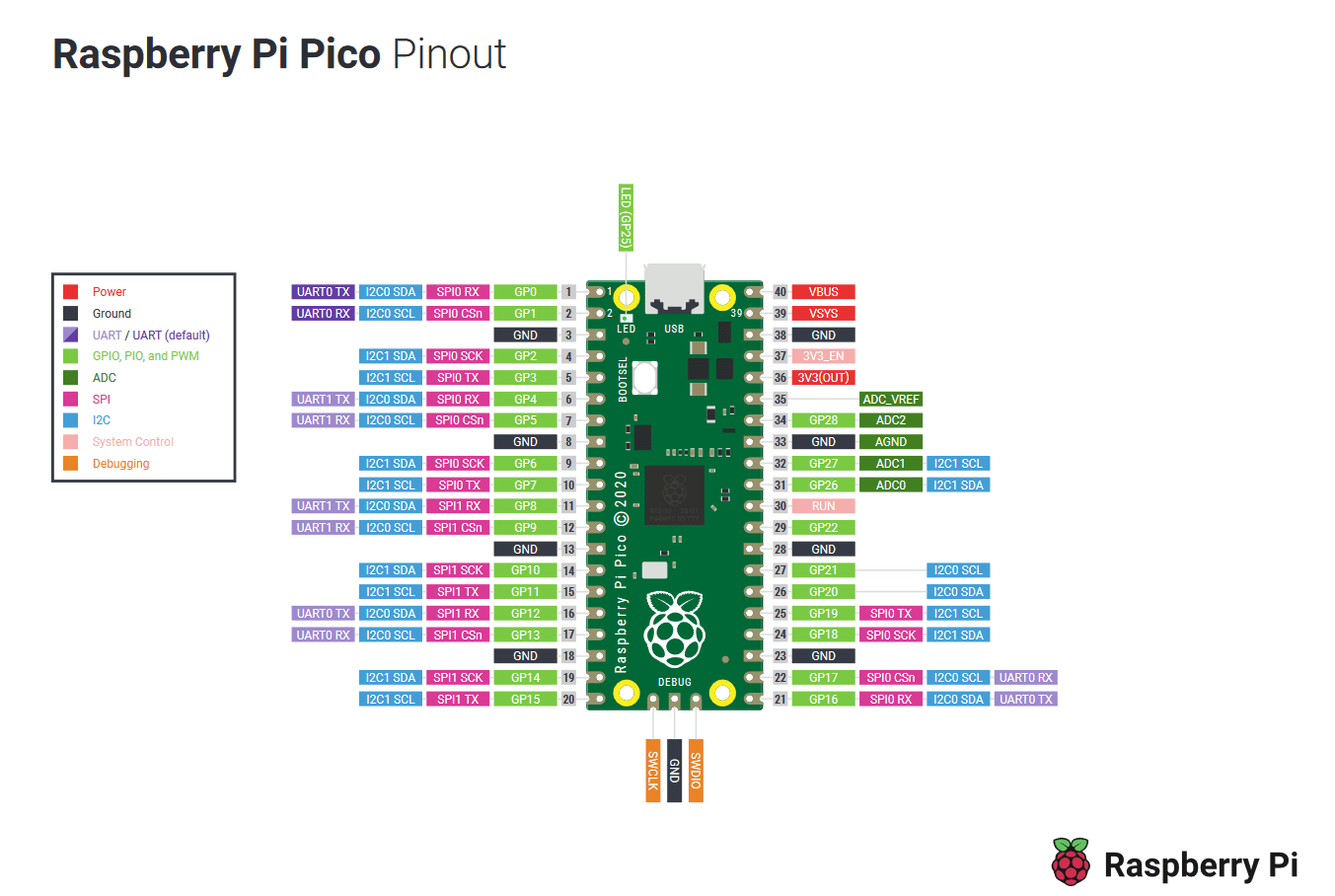

• 26 Multifunction General Purpose 3.3v IO pins (23x digital only, 3x ADC capable)

• 2x SPI, 2x I2C, 2x UART, 3x 12-bit ADC and 16x controllable PWM channels

• Can be surface mounted as a module

• Accurate clock and timer on chip

• Temperature sensor

• Accelerated floating point libraries

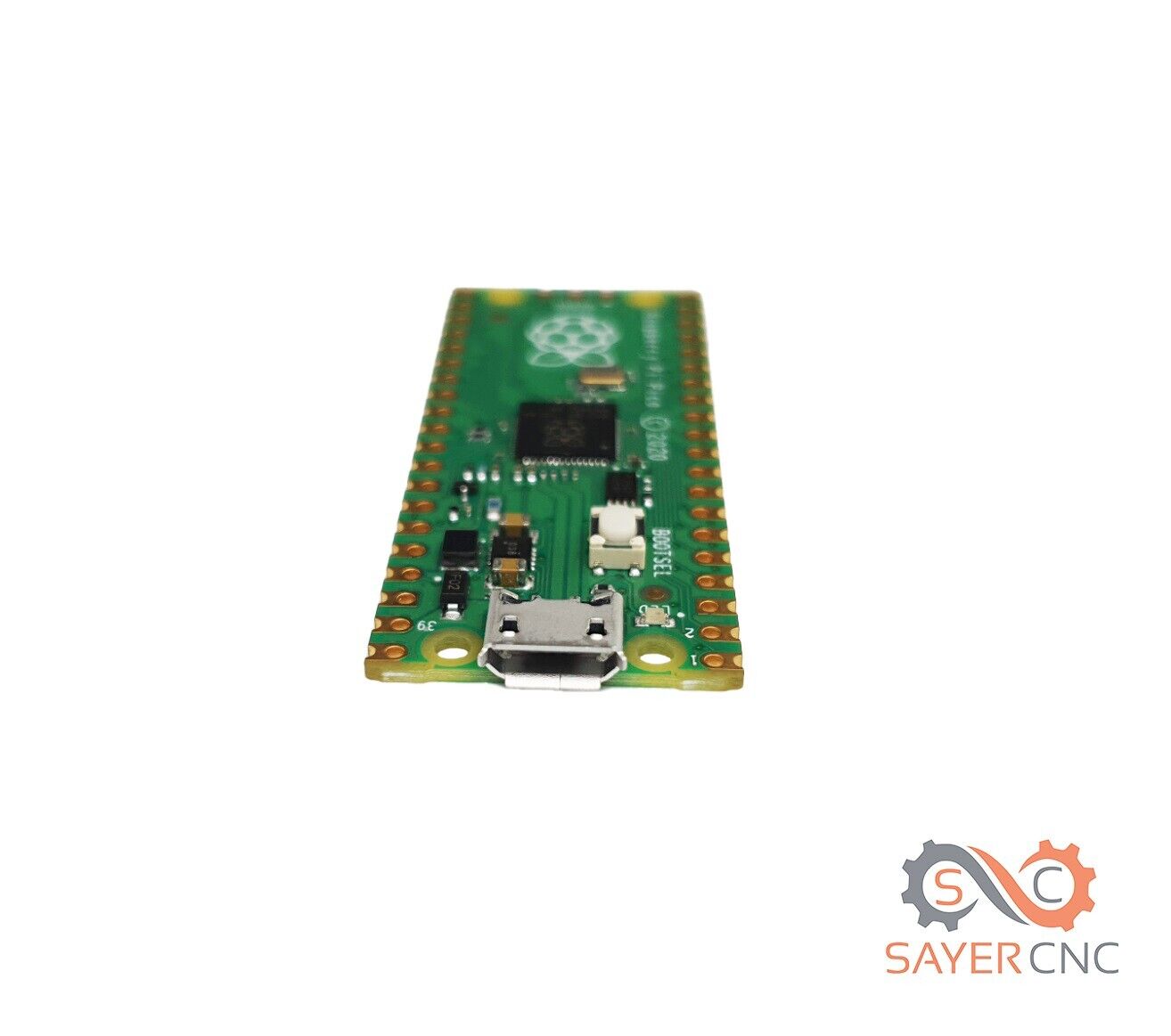

• Micro USB port for power & data (and for reprogramming the Flash)

• 3-pin ARM Serial Wire Debug (SWD) port

• Various options for easily powering the unit from micro-USB, external supplies or batteries

• Pin headers - Board-to-Board, 2.54 mm, 1 Rows, 20/3 Contacts, Through Hole, MC34 Series
