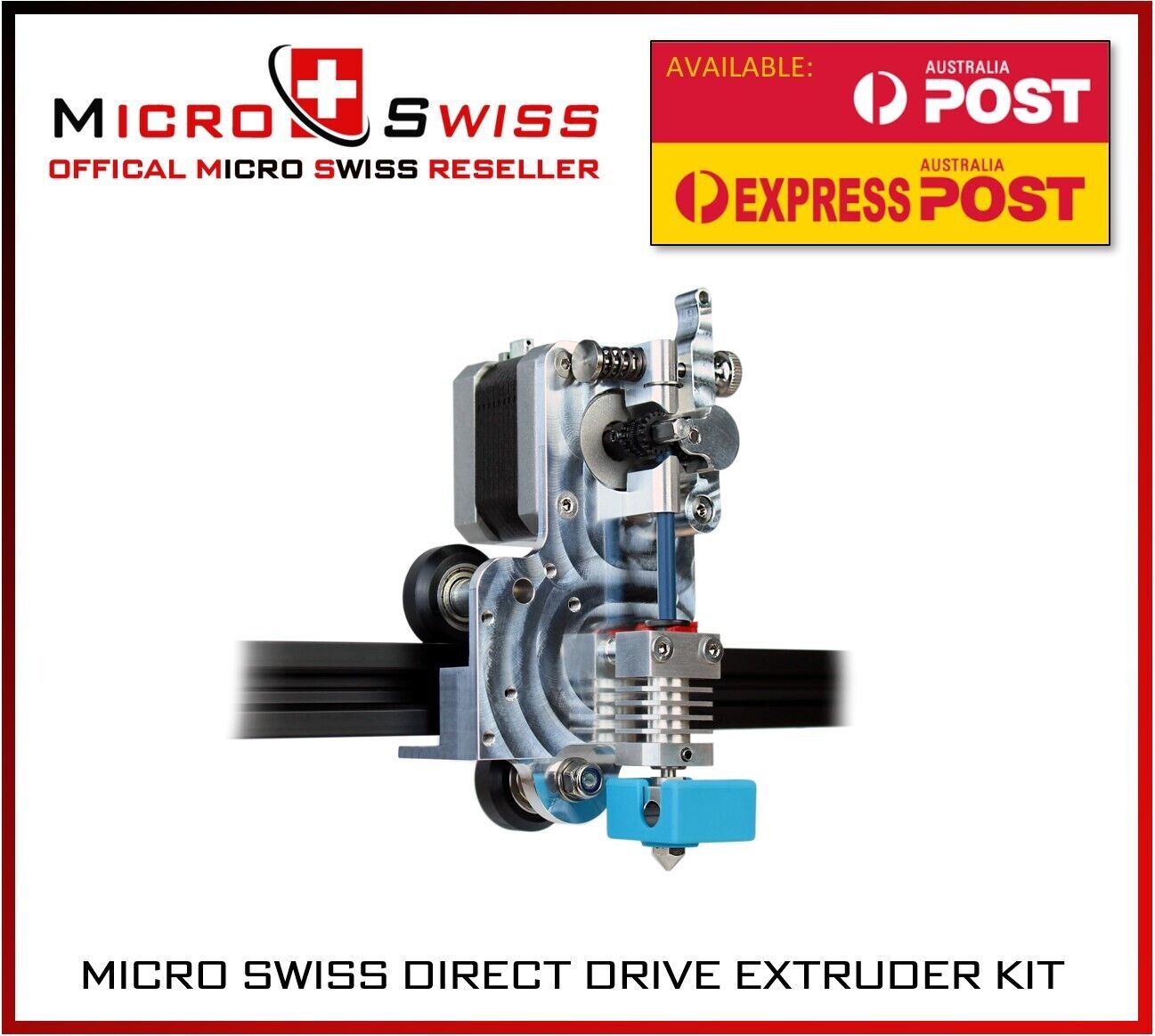

Micro Swiss Direct Drive Extruder is a drop in system for CR10 / Ender Printers
No modification required, simple plug and play
No printed brackets or sandwiches
Features:
Dual-drive train
Hardened tool steel, CNC precision cut gears
Adjustable filament grip
Easy filament loading
Short, highly constrained filament path
Prints flexible filaments with high speed and accuracy
Outstanding extrusion control
Lightweight aluminium body
Compatible with:
CR-10 (Will NOT directly fit CR10 V2, V3)
CR-10-S5
CR-10-S4
CR-10S
CR-10S Pro V1 *Fits with printable fan shroud
CR-10S Pro V2 *Fits with printable fan shroud
CR-10 Max *Fits with printable fan shroud
CR-10 MINI
CR-20
CR-20 Pro
Ender 2
Ender 3
Ender 3 Max *Fits with printable fan shroud and PTFE bracket
Ender 3 Pro
Ender 3 V2 *Fits with printable fan shroud
PLEASE NOTE
There has been a recent extruder stepper motor update on Creality machines. Before ordering this kit, please check your extruder stepper motor. If your extruder motor gear is pressed in, you will need to purchase a new stepper motor to be able to complete the installation.
A gear removal tool is available here: https://www.ebay.com.au/itm/185692073737 if you would like to attempt removal of your pressed gear on the stepper motor (though a new stepper in recommended). Please keep in mind that the shaft will not have a flat side on the shaft and modification may be required at your own risk.
Kit Contains:
Stepper motor and roller wheels are NOT included

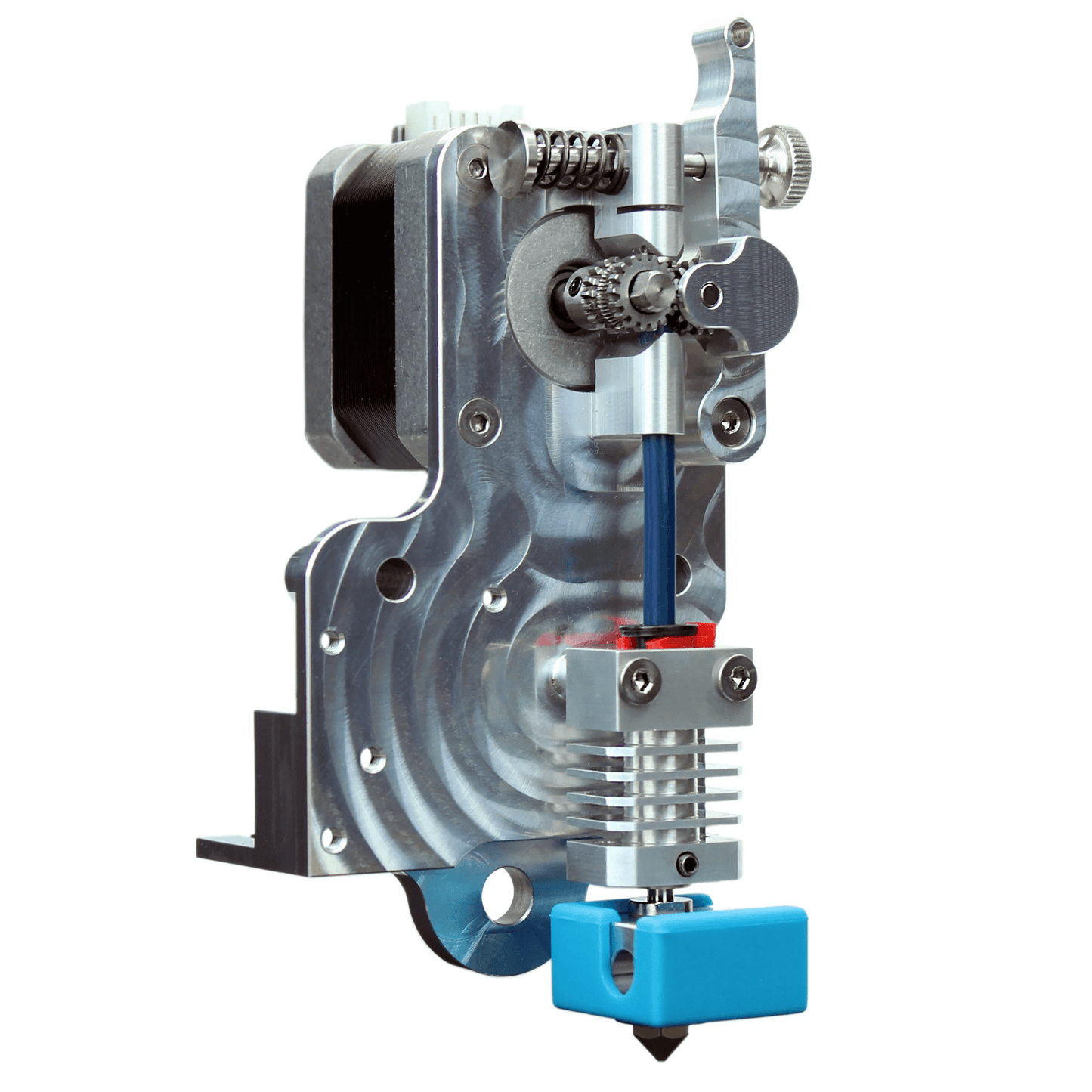

1 x Micro Swiss All Metal Hotend (If option selected)

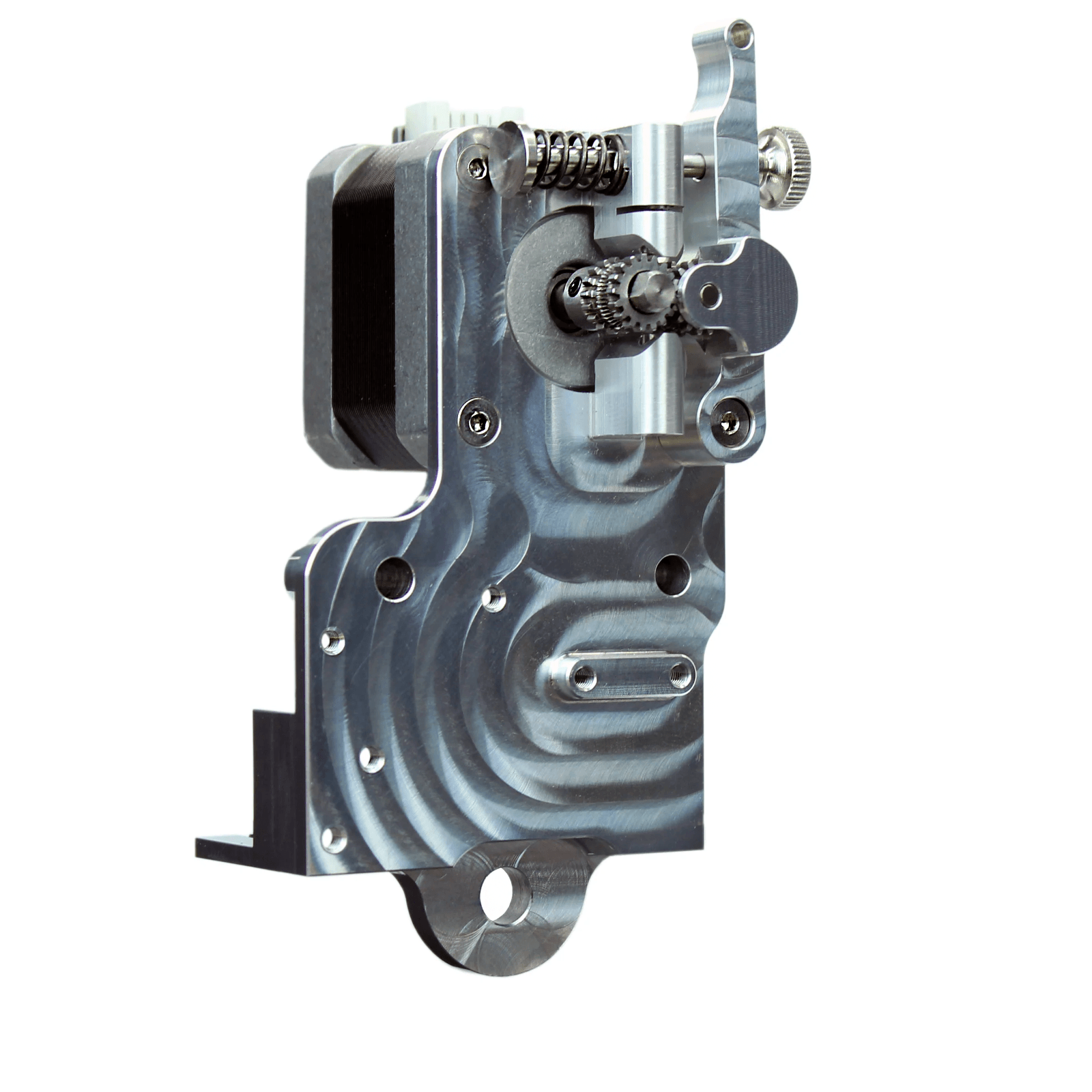

1 x Main Extruder body
1 x Extruder Lever
1 x Spring Pin
1 x Spring
2 x Gears
1 x Knob
1 x Shoulder Pin
2 x M5 20mm Nylon Patch Bolts
1 x M5 30 Bolts
1 x M5 Nylon Lock Nut
1 x M5 Washer
1 x Extension Cable
3 x M3 Motor Mounting Screws
2 x M3 Bolts
2 x M3 Nuts
5 x Zip Ties
1 x Printed Bracket
1 x Bevelled Capricorn Liner
*Stepper motor in pictures for illustration purposes only and not included
See images on listing for more information on what is included in kit.
