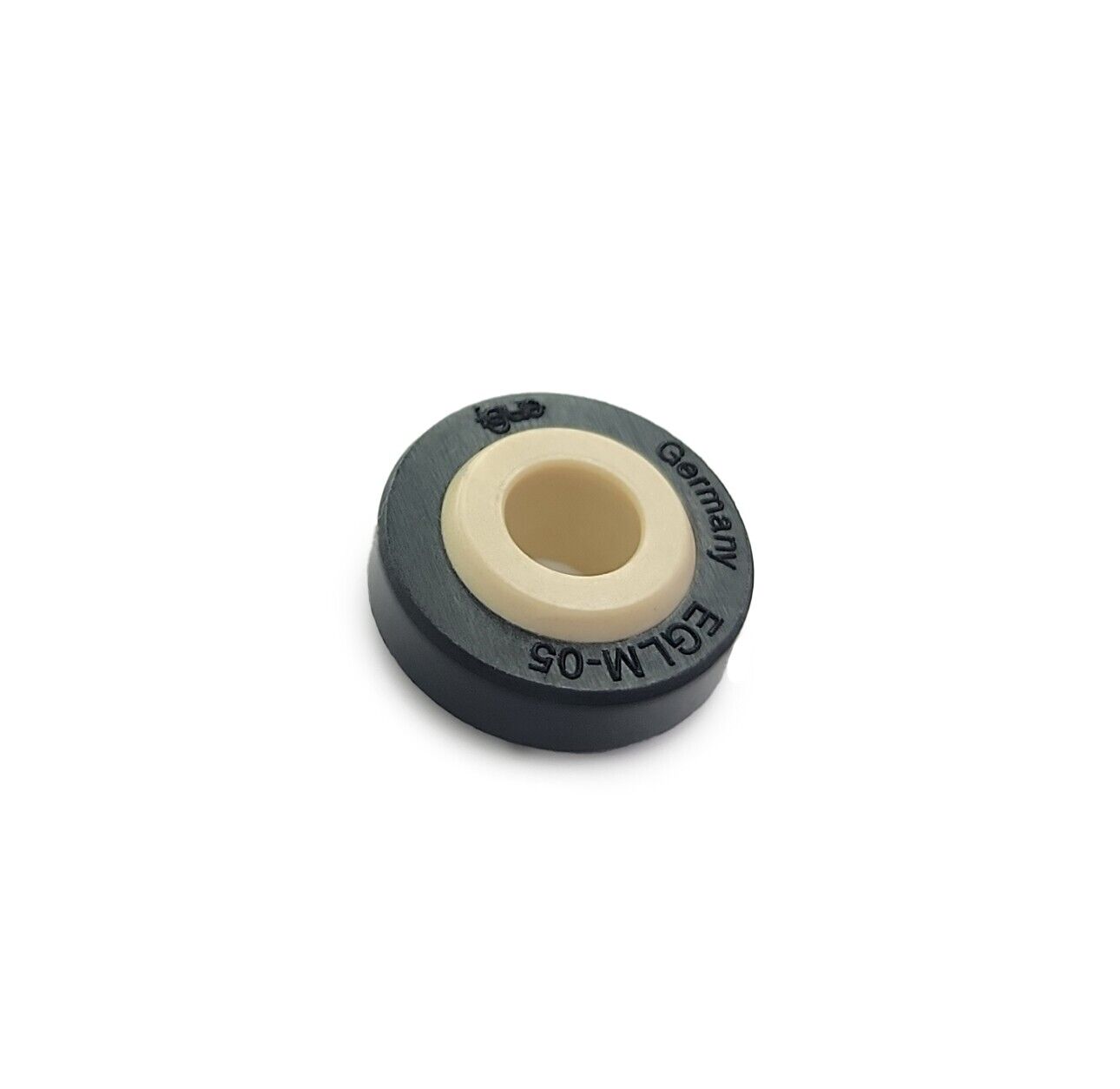

IGUS EGLM-05 Spherical Bearing GE5C Alternative 1pc

Often roller bearings or plain bearings malfunction prematurely due to high edge loads, or because they need to be elaborately readjusted, reamed, or refitted in order to compensate for alignment errors. igubal spherical bearings put an end to all of these disadvantages and open up many new possibilities for your engineering design or 3D printer application. They are easy to handle, cost-effective, lightweight and robust.

The housing is made from igumid G, an extremely impact-resistant, long-fiber-reinforced polymer. Suitable for temperatures from -30 °C to +80 °C in long-term use.

In standard spherical bearings, the spherical ball is made from iglide L280 material, which is known for lowest coefficients of friction in dry operation and extremely low tendency to stick-slip. This is especially important for low loads and very slow movements.

Specifications:

• Housing material: igumid G
• Spherical ball material: iglide L280
• Dimensions below or in photos.

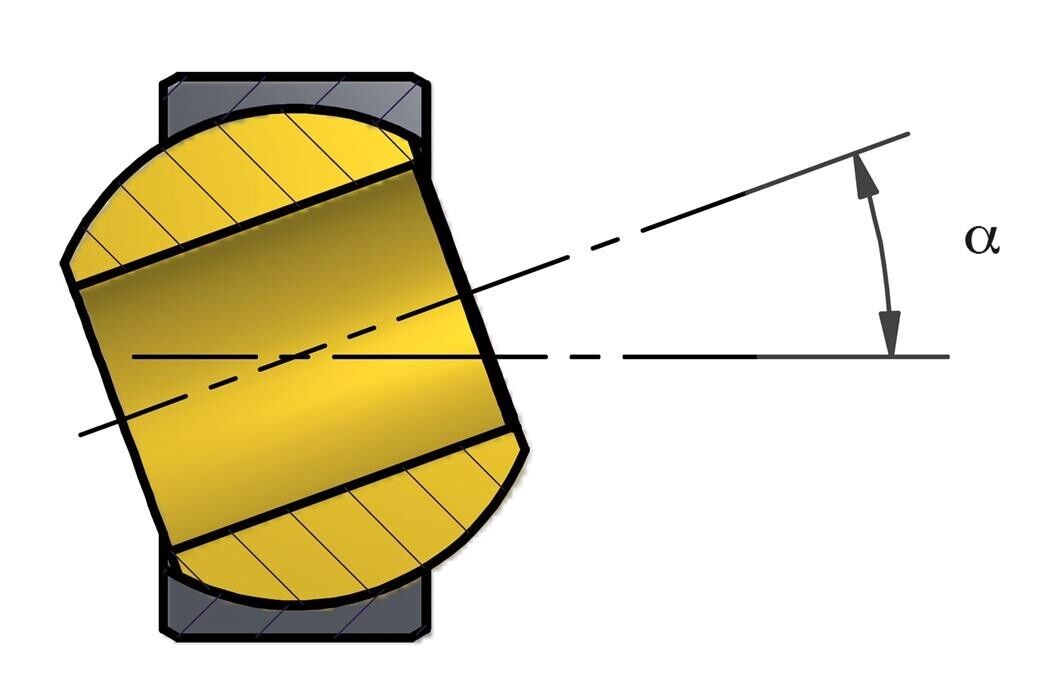

• Compensation of misalignment and edge loads
• Corrosion-resistant
• Excellent vibration dampening
• Suitable for rotating, oscillating and axial movements

Typical application areas:

• Voron Trident
• Voron GE5C Mod

Do not use if temperatures are higher than +80 °C or rotation speeds higher than 0.5 m/s are required.
