Ideal Applications:
Gear Removal from stepper motors or other small motors

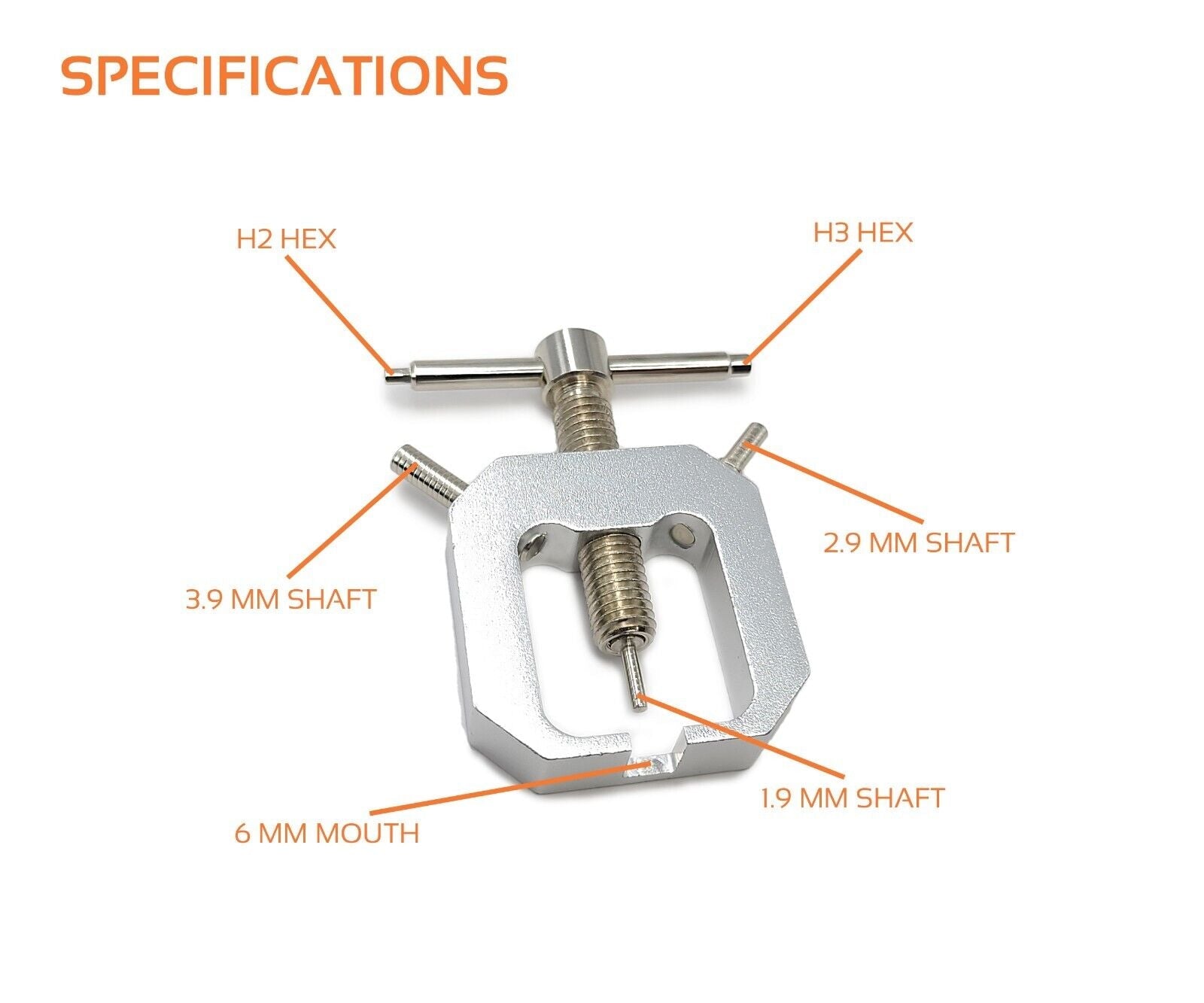

Specifications:
- Material: Aluminium Alloy
- Shaft sizes: 1.9mm, 2.9mm, 3.9mm
- Hex Tool Sizes: H2 & H3
- Mouth Size: 6mm
- Inside Space Size: 24mm (gear width limitation)
*Please see pictures for more information
Considerations:
Choose shaft according to the size of the shaft diameter of the motor. Choosing a shaft much smaller than the motors shaft may damage the gear puller.
Some gears may be glued to the shaft of the motor. Application of heat to the gear may be required to remove gear glue. Please use caution if so, as there is so many variations of motors and gears, each removal process may require different procedures.
Gear puller is made from aluminium alloy and is not designed for heavy duty applications. Please take care when using this tool to prevent any damage to the tool, gear, motor or shelf.
