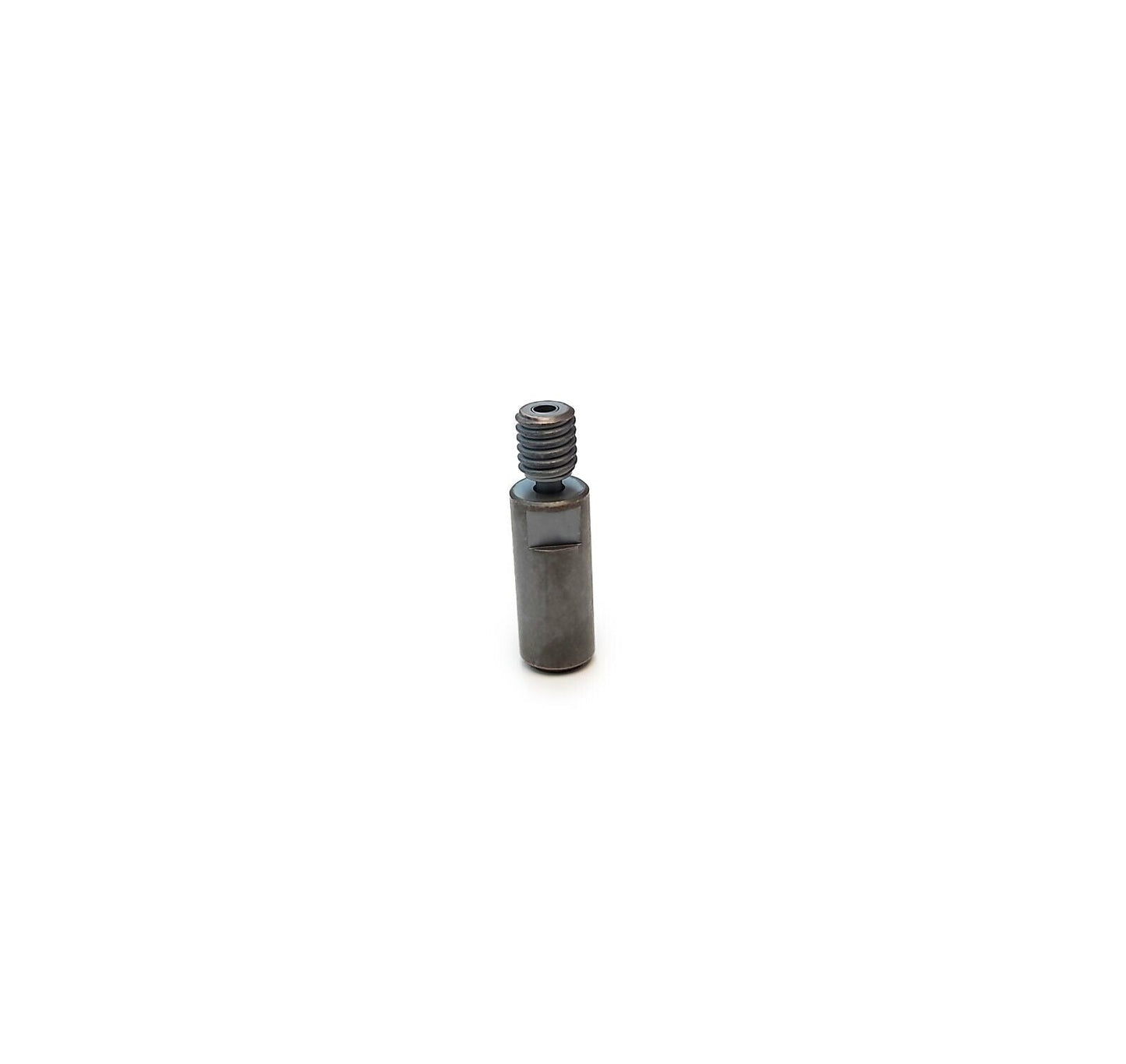

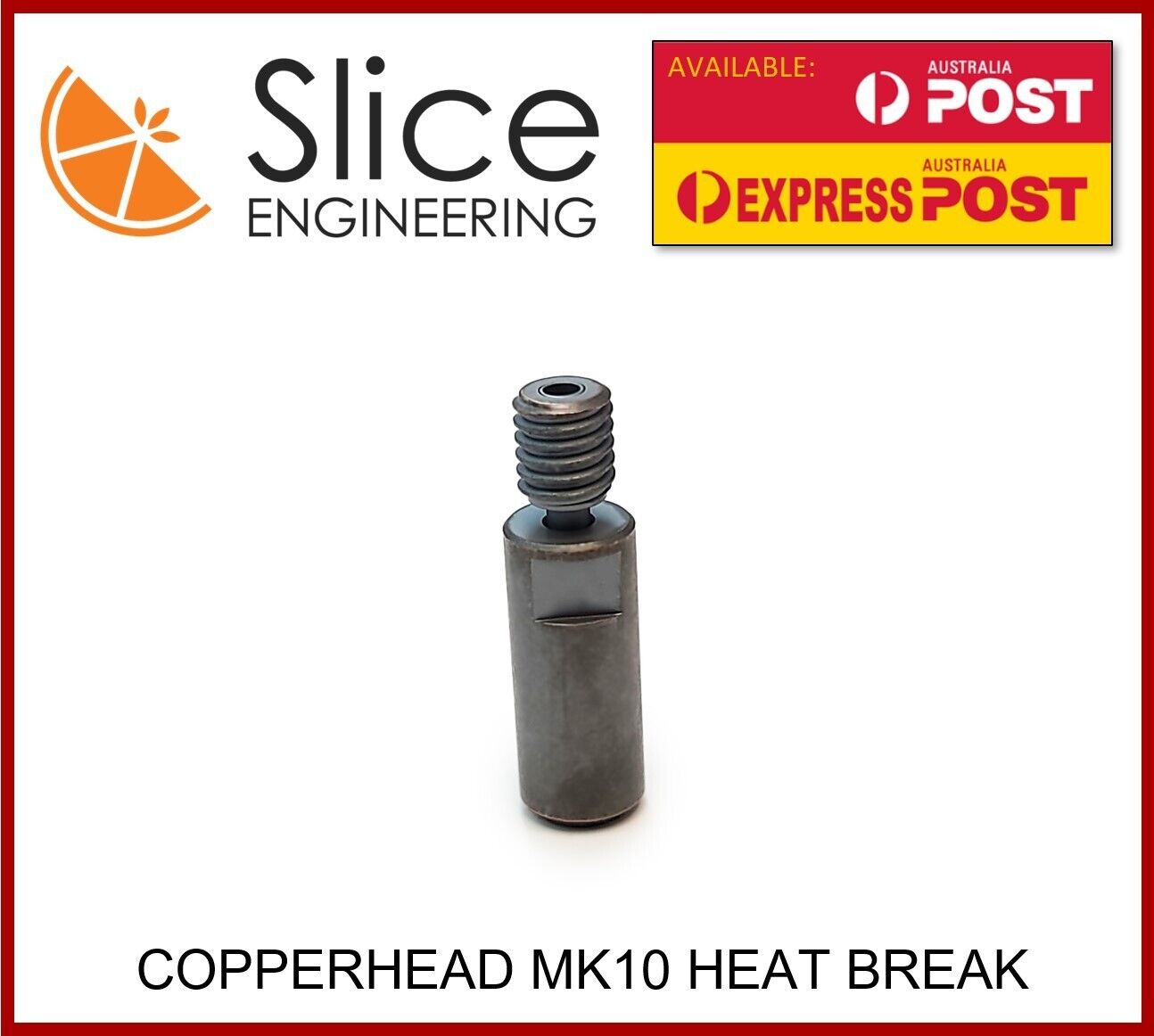

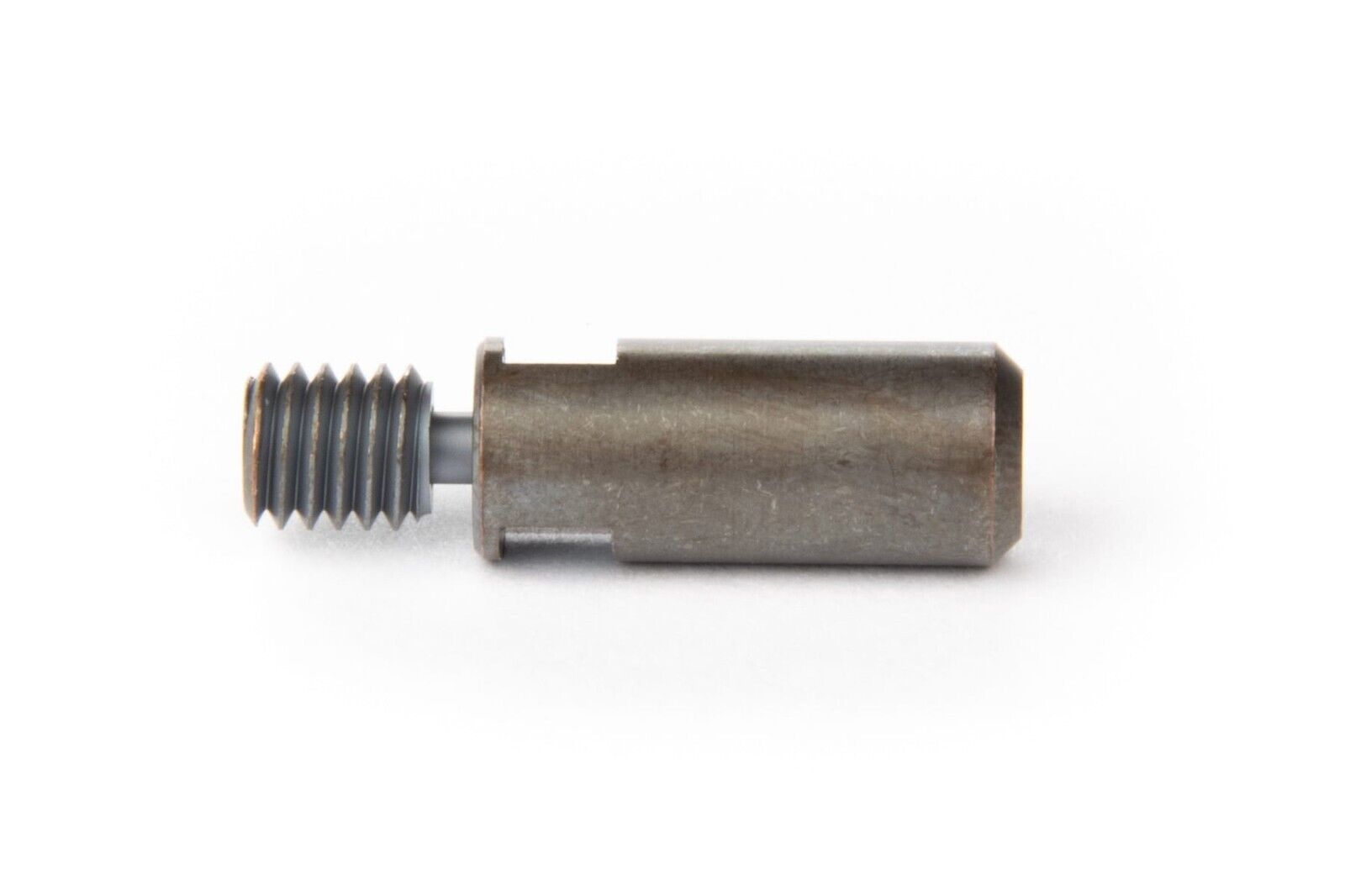

Copperhead MK10 Heat Break for Flashforge Cocoon Create and More
This Heat Block is a part of the new flexible assembly
Copperhead Hotend from Slice Engineering

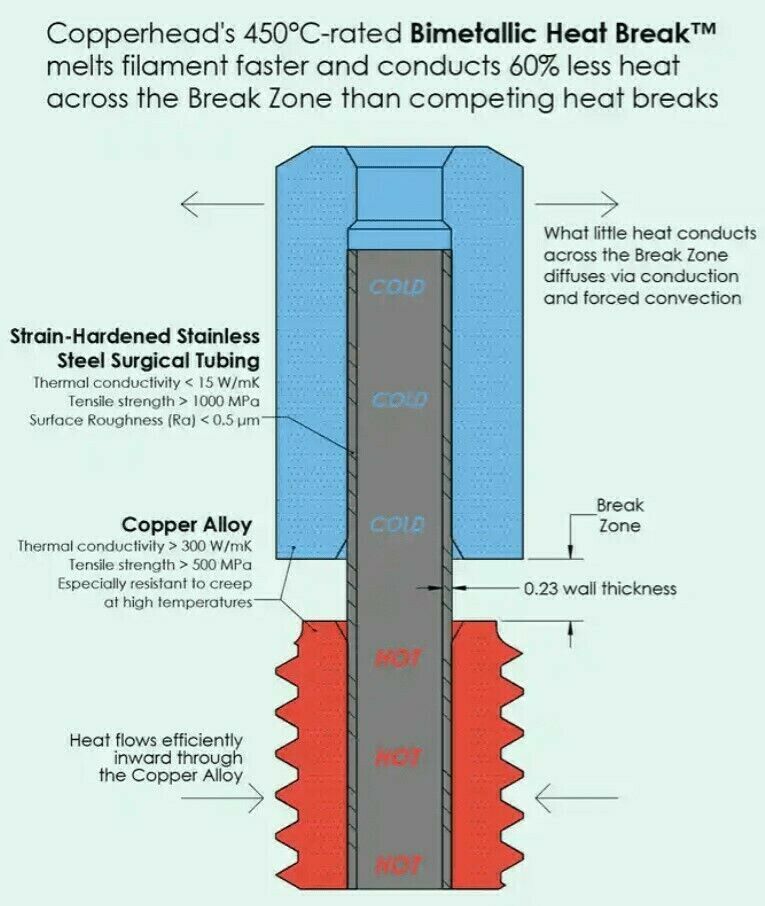

This Bimetallic Copperhead Heat Break is made with:
- Stainless Steel
- Copper alloy
Rated up to 450 °C
This Heat Break is compatible with:
- Cocoon Create 3D
- Dremel Idea Builder
- FlashForge Creator Pro
- FlashForge Dreamer
- MakerGear M2 Series
- MakerGear M3 Series
- Monoprice Maker Select v2
- PowerSpec 3D Pro
- PowerSpec 3D X
- PowerSpec Ultra 3D
- Qidi Tech I
- Wanhao Duplicator 4S
- Wanhao Duplicator 4X
- Wanhao i3

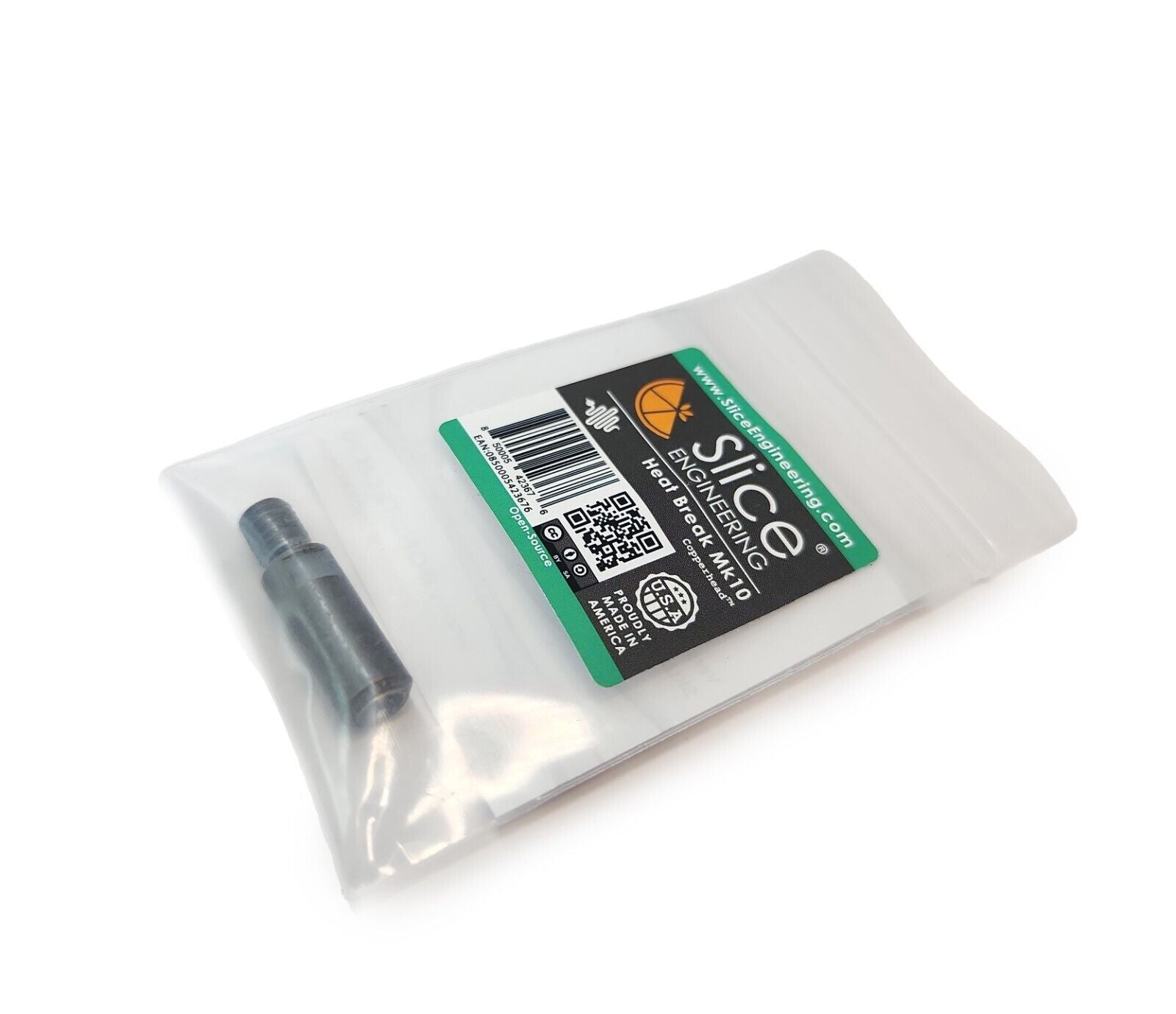

Included in this Copperhead Heat Break set:
- Copperhead MK10 Heat Break
Problem Solving Heat Break
The Copperhead is a low-cost, open-source hotend option that can handle the heat — heat creep, that is. Replace your factory model hotend with the Copperhead, to upgrade your 3D printer’s performance and reduce jamming, giving you a smooth print every time.
Advanced Materials Technology
Unlike most materials, plastics don’t have a clean transition from solid to liquid during melting. As filament moves through the hotend, it heats up and reaches the material’s glass transition temperature (Tg), entering a semi-solid, semi-liquid, “gooey” state. While in this state, the plastic responds to applied forces like a wet noodle, causing undesirable print effects like reduction in resolution, blobbing and jamming. An efficient heat break narrows the physical distance during which the plastic is at it’s Tg, and thus improves 3D printer performance. The Bimetallic Heat Break from Slice Engineering is the only heat break designed through the use of thermal imaging to optimize heat transfer.
